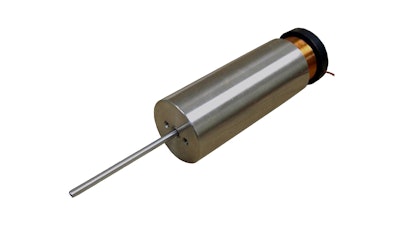

Moticont, based in Van Nuys, CA, has introduced the GVCM 032-076-02M Linear Voice Coil Servo Motor—a compact, high-performance linear actuator designed for precision motion control applications.
This voice coil motor delivers smooth, high-speed linear motion with low inertia and high repeatability, ideal for lab automation, cleanroom systems, assembly tools, and precision positioning applications.
Features & Benefits:
- Stroke & Size:
- 63.5 mm (2.50 in.) stroke
- 31.8 mm (1.250 in.) diameter
- 152.4 mm (6.00 in.) overall length
- Force Output:
- 8.0 N continuous force
- 25.3 N peak force at 10% duty cycle
- Motion Performance:
- High repeatability and accuracy with servo loop and encoder integration
- Zero cogging and low inertia for rapid acceleration/deceleration
- Mounting & Shaft Design:
- Internal M2.2×0.45 threaded shaft (zero-backlash load connection)
- Mounting holes: M3.5×0.6 on 12.7 mm (0.500 in.) bolt circles
- Shaft guided by plain bushing tolerating side load up to 2.0 N
- Build & Operation:
- Clean, quiet operation ideal for sensitive environments
- Made in the USA
The motor is suited for use in haptics, pipetting, laser machining, medical devices, optical focusing, vibration absorption, testing, and automation tasks requiring precise linear motion.
The GVCM 032-076-02M and other Moticont linear servo motors are available as complete plug-and-play systems with compatible motion controllers. Customization for longer strokes or higher forces is available.
